ePropulsion Spirit 1.0 Plus Motorenersatzteile (Spare Part)
Hier finden Sie alle Ersatzteile rund um den ePropulsionSpirit 1.0 Plus Motoren-Schaft. Fragen Sie einfach die Ersatzteile unter [email protected] an teilen Sie uns die Teilenummer beziehungsweise das gewünschte Teil mit.
Wichtig: Bitte in der Mail den Motor angeben und um welches Teil es sich handelt, damit wir die Teilenummer zuordnen können.
Wir machen Ihnen dann schnellstmöglich ein Angebot mit Preis und Lieferzeit.

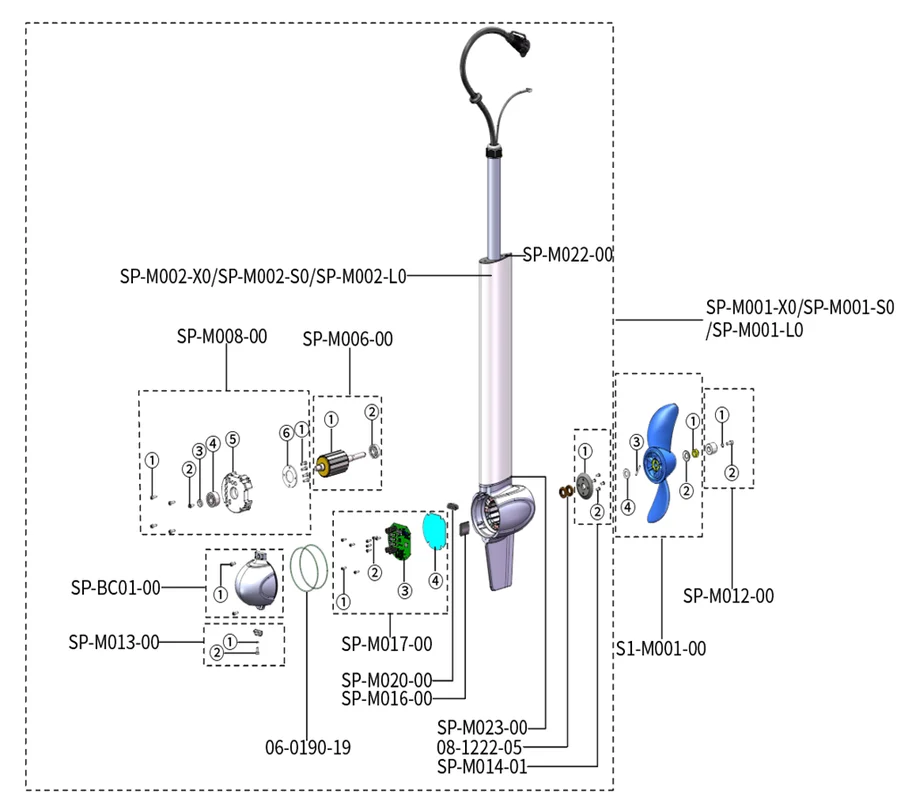

| No. | Part no. | Description | Qty. | |
| SP-M001-X0 | Plus Motor Main Part Extra Shortshaft w/o Propeller | 1 Set | ||
| SP-M001-S0 | Plus Motor Main Part Shortshaft w/o Propeller | 1 Set | ||
| SP-M001-L0 | Plus Motor Main Part Longshaft w/o Propeller | 1 Set | ||
| 1 | SP-M003-X1 | Plus Power Cable Extra Short ( Small Connector) | 1 Set | |
| SP-M003-S1 | Plus Power Cable Short ( Small Connector) | 1 Set | ||
| SP-M003-L1 | Plus Power Cable Long ( Small Connector) | 1 Set | ||
| SP-M003-X0 | Plus Power Cable Extra Short ( Big Connector) | 1 Set | ||
| SP-M003-S0 | Plus Power Cable Short ( Big Connector) | 1 Set | ||
| SP-M003-L0 | Plus Power Cable Long ( Big Connector) | 1 Set | ||
| SP-M024-00 | Power Cable Connector Cap Assy. | 1 | ||
| 2 | SP-BC01-00 | Plus Motor Cover | 1 | |
| ① | 01-0104-10 | Hex Socket Round Head Screw M4X10 | 2 | |
| 3 | 06-0190-19 | O Ring φ90×1.9 | 2 | |
| 4 | SP-M006-00 | Plus Rotor Assy. | 1 Set | |
| ① | SP-M007-00 | Plus Rotor | 1 Set | |
| ② | 07-0260-01 | Deep Groove Ball Bearing 6001ZZ | 1 | |
| 5 | SP-M008-00 | Driver Cooling Block Set | 1 Set | |
| ① | 01-0104-12 | Hex Socket Round Head Screw M4X12 | 8 | |
| ② | 01-0905-12 | Hexalobular Socket Countersunk Head Screw M5X12 | 1 | |
| ③ | SP-M009-00 | Rotor Axial Limit Ring | 1 | |
| ④ | 07-0352-00 | Double-Row Angular Contact Ball Bearing 5200ZZ | 1 | |
| ⑤ | SP-M010-00 | Driver Cooling Block | 1 | |
| ⑥ | SP-M021-00 | Bearing Lock Ring | 1 | |
| 6 | SP-M016-00 | Three-phase Line Pass Line Sleeve | 1 | |
| 7 | 08-1222-05 | Oil Seal TC12X22X5 | 2 | |
| 8 | SP-M014-01 | Oil Seal Cover Set V1.0 | 1 Set | |
| ① | SP-M015-00 | Oil Seal Cover | 1 | |
| SP-M015-01 | Oil Seal Cover V1.0 | |||
| ② | 01-0404-08 | Phillip Pan Head Screw M4X8 | 4 | |
| 9 | SP-M013-00 | SPIRIT 1.0 Plus Motor Anode | 1 Set | |
| ① | 03-0304-00 | Spring Washer M4 | 1 | |
| ② | 01-0104-10 | Hex Socket Round Head Screw M4X10 | 1 | |
| 10 | SP-M017-00 | Plus Driver Assy. | 1 Set | |
| ① | 01-0103-10 | Hex Socket Round Head Screw M3X10 | 4 | |
| ② | 01-0103-05 | Hex Socket Round Head Screw M3X5 | 5 | |
| ③ | SP-M018-00 | Plus Driver | 1 | |
| ④ | SP-M019-00 | Plus Driver Silicone Thermal Pad | 1 | |
| 11 | SP-M020-00 | Power Cable Pass line Rubber Part | 1 | |
| 12 | S1-M001-00 | SPIRIT 1.0 Propeller | 1 Set | |
| ① | 02-0110-00 | Hex Locknut M10 | 1 | |
| ② | 03-0510-00 | Disc Washer M10 | 1 | |
| ③ | 04-0103-25 | Pin Ф3X25 | 1 | |
| ④ | 03-0210-20 | Plain Washer M10X20X2.0 | 1 | |
| 13 | SP-M012-00 | SPIRIT 1.0 Plus Shaft Anode | 1 Set | |
| ① | 03-0305-00 | Spring Washer M5 | 1 | |
| ② | 01-0105-12 | Hex Socket Round Head Screw M5X12 | 1 | |
| 14 | SP-M022-00 | Stream Deflector Rubber Upper | 1 | |
| 15 | SP-M023-00 | Stream Deflector Upper Lock | 1 |
